Products & systemsFaçade systems

Façade systems

Complete envelope solutions — structure, glass, and cladding as one system.

Highlights

  • Curtain wall and structural glazing
  • Rainscreen and brise soleil integration
  • Movement, deflection, and tolerances
  • One coordinated envelope discipline

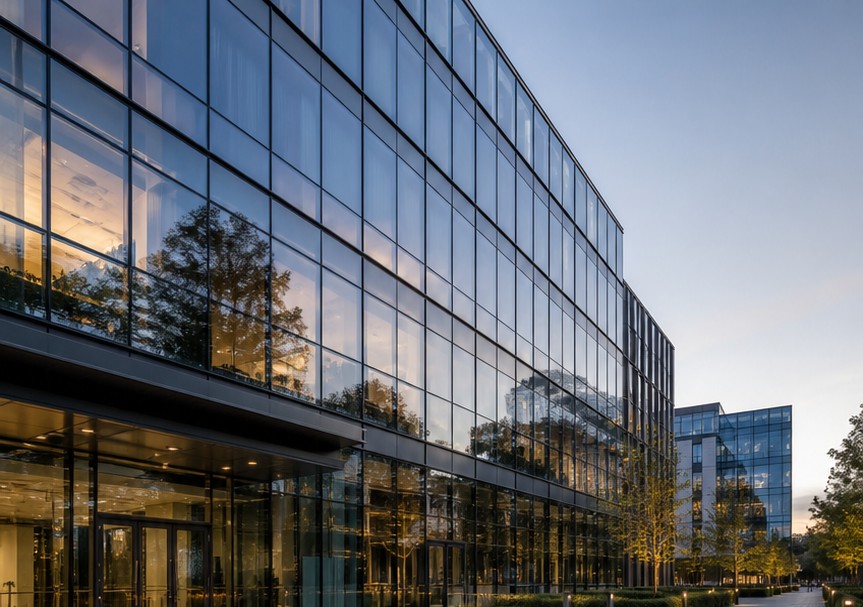

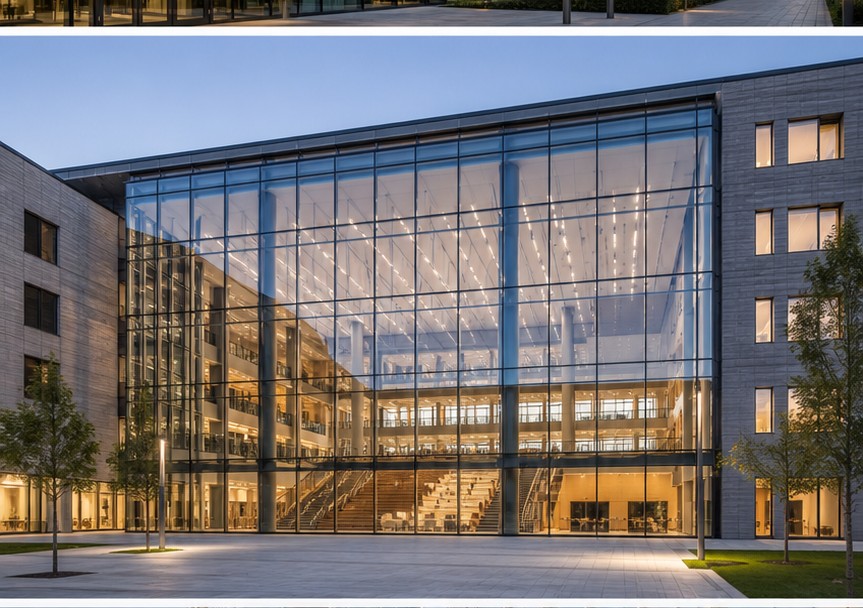

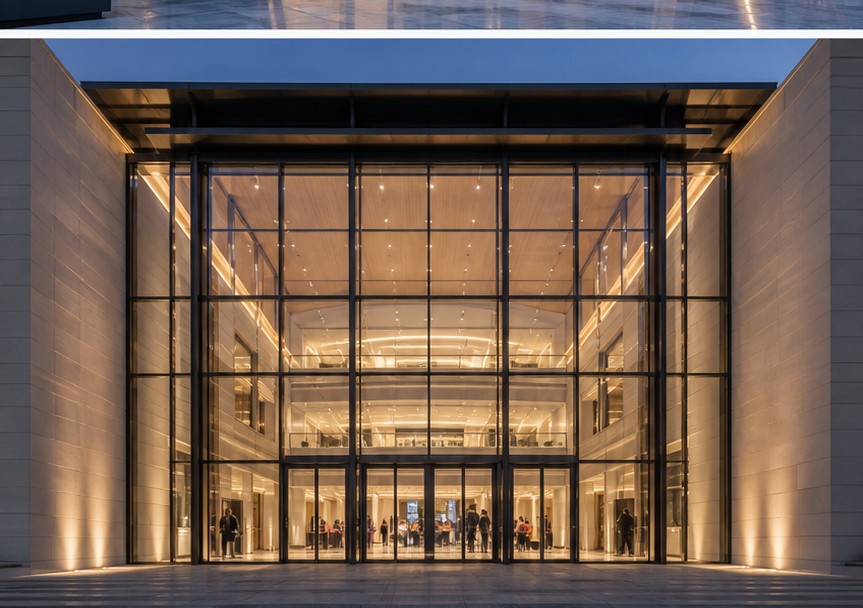

Stick-built curtain wall — two floors of mullions, transoms, and pressure-glazed vision glass, medium view

01

Curtain wall

Stick and unitised solutions with coordinated thermal and acoustic performance.

  • Stick-built and unitised typologies
  • Mullion–transom grids and pressure plates
  • Spandrel and vision zone coordination
  • Movement, drainage, and acoustic interfaces
View line

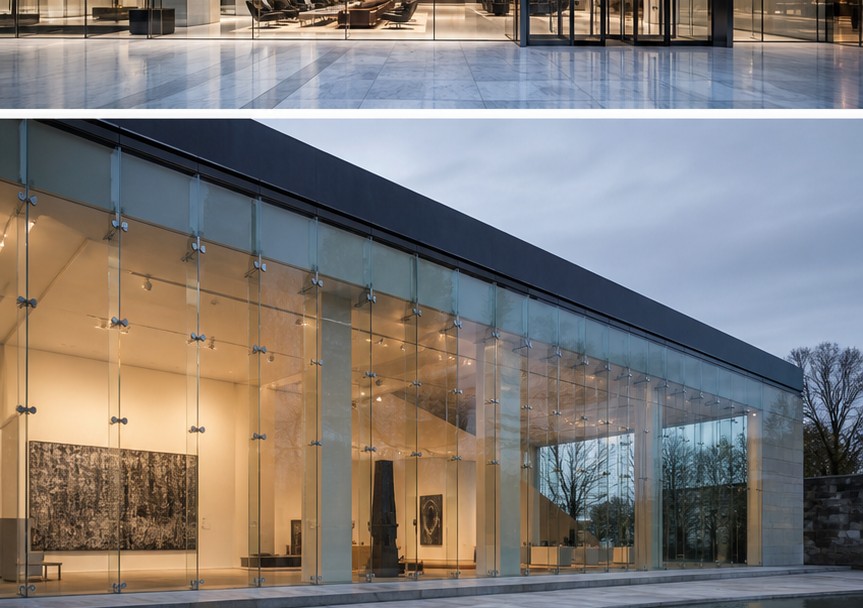

Structural glazing — two floors of frameless glass with subtle silicone joints, medium architectural view

02

Structural glazing

Silicone-bonded and planar glazing with engineered structural support.

  • Silicone-bonded planar joints
  • Spider and fin structural nodes
  • Minimal visible metal structure
  • Engineered glass-to-glass corners
View line

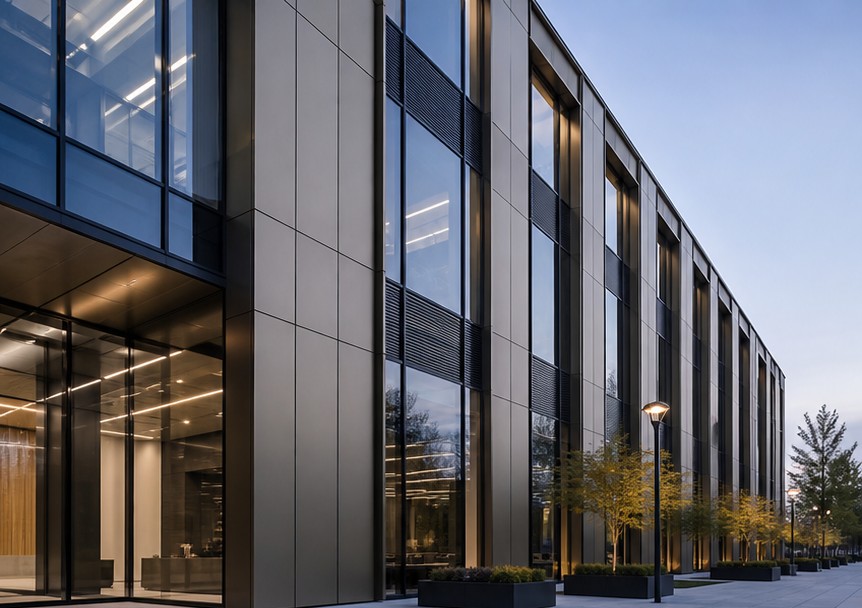

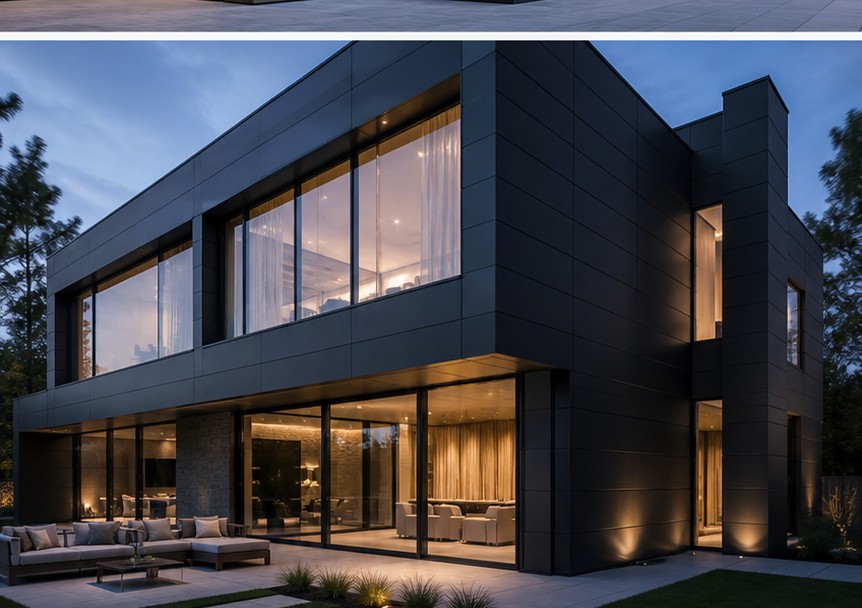

Rainscreen cladding — two floors of panel rhythm with integrated glazing bands, medium façade view

03

Rainscreen cladding

Drained and ventilated façades with precise panel geometry and joints.

  • Drained and ventilated cavities
  • Opaque spandrel and cassette carriers
  • Open-joint rainscreen geometry
  • Layered cladding and insulation
View line

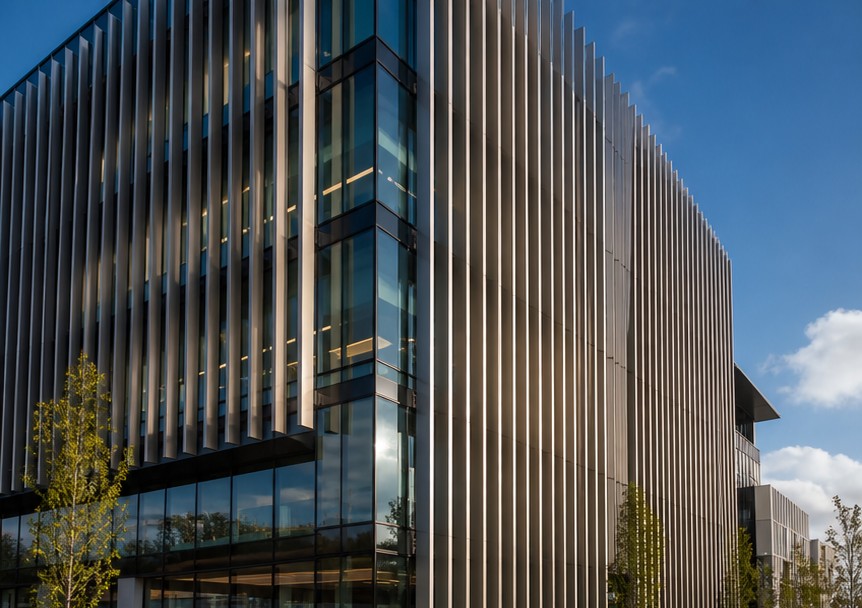

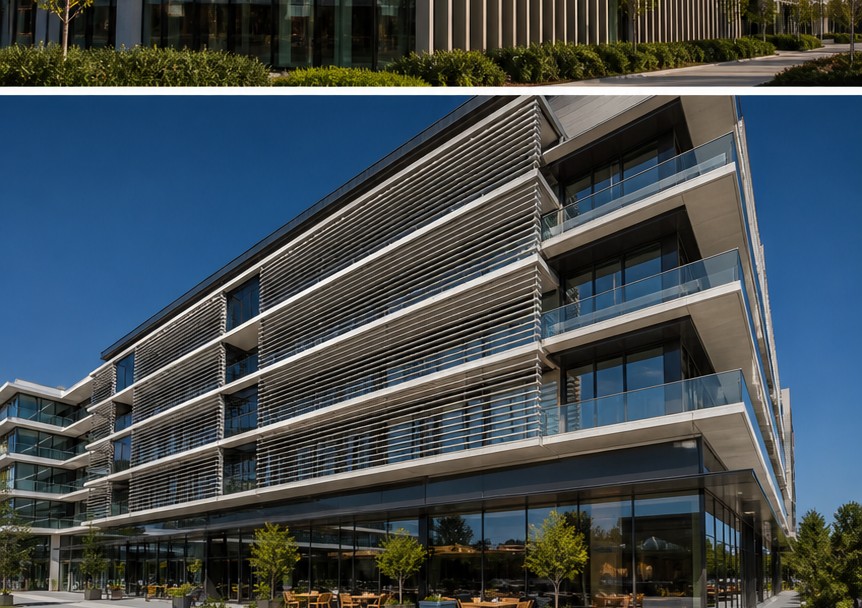

Solar shading — horizontal brise soleil over two floors of glazing, medium-distance elevation

04

Solar shading

Brise soleil and louvres integrated with the primary envelope.

  • Brise soleil and vertical fins
  • Motorised louvre integration
  • Glare and solar heat control
  • Primary façade coordination
View line

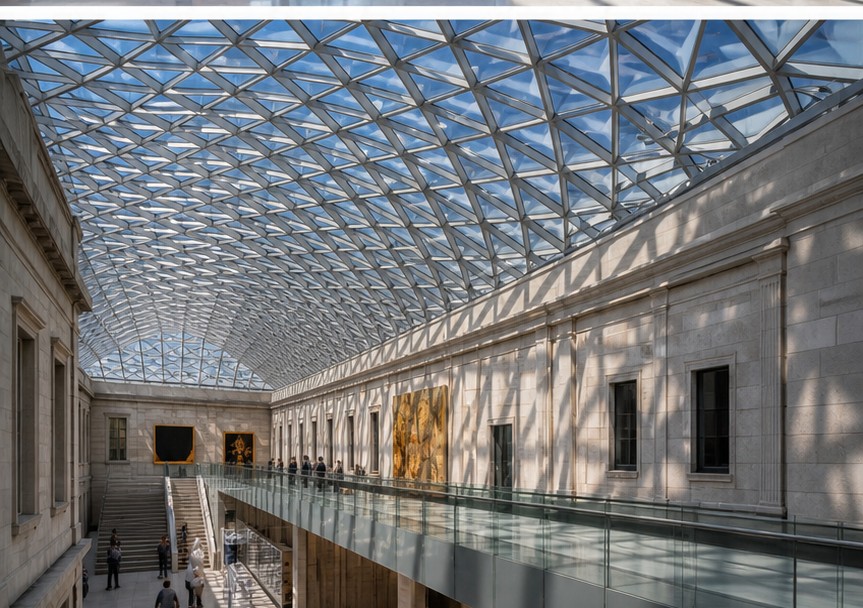

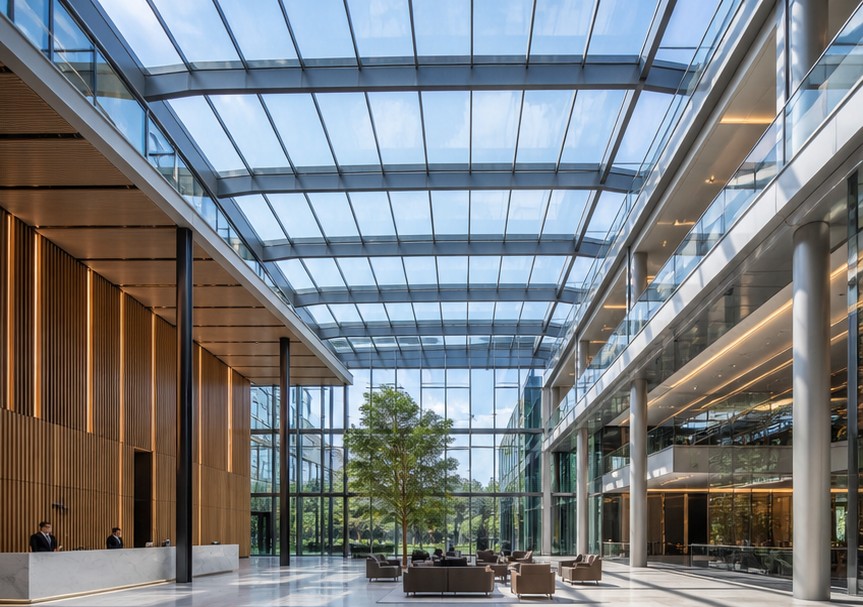

Atrium skylight — roof glazing and surrounding levels in a medium interior view

05

Atrium & skylight

Large overhead glazing with safety, maintenance, and thermal control.

  • Steel or aluminium overhead grids
  • Guttered silicone junctions
  • Smoke vent and actuator hardware
  • Maintenance and safety access
View line

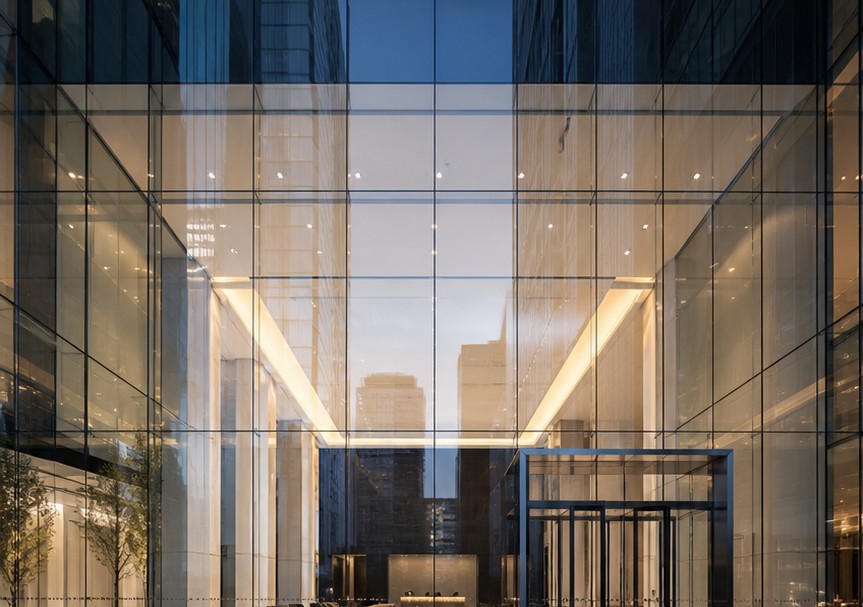

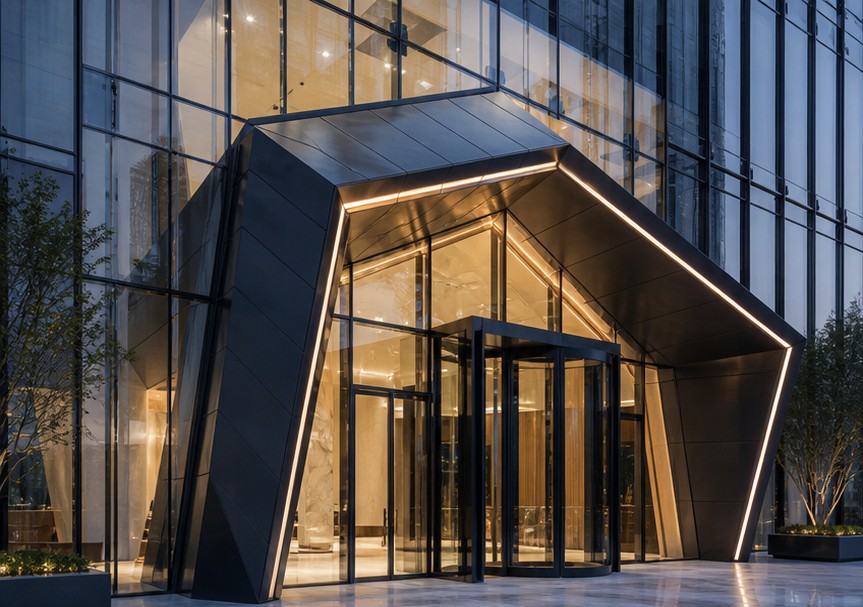

Feature entrance — glass wall and canopy with two floors of surrounding façade for context

06

Entrance & feature façades

Signature entrances and feature zones with coordinated metal and glass.

  • Structural glass fin walls
  • Steel–glass canopies and portals
  • Deep reveals and sidelite coordination
  • Arrival and lobby-scale clarity
View line
